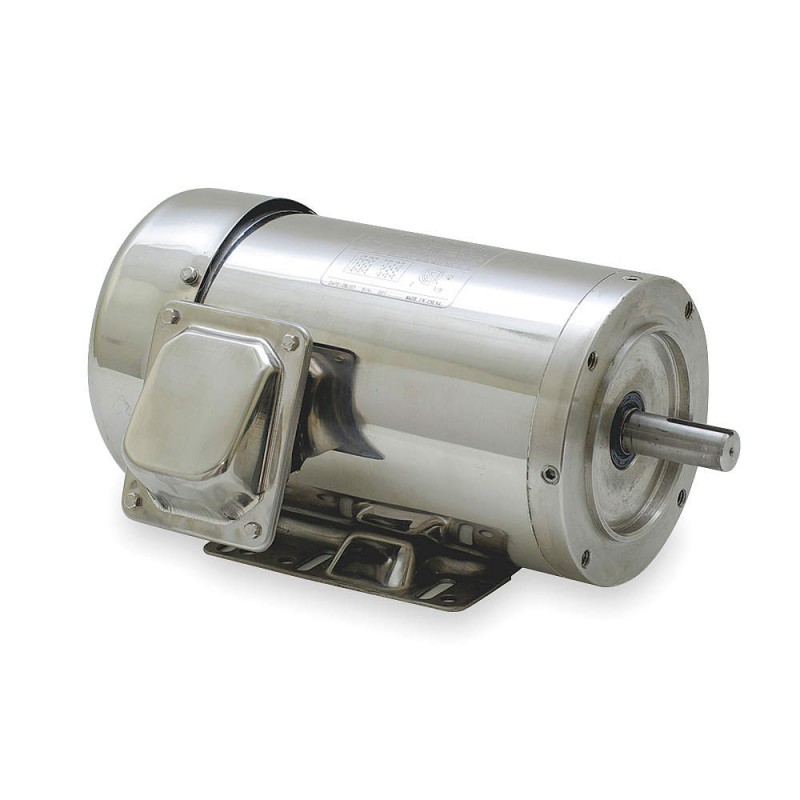

20 HP Washdown Motor, 3-Phase, 1765 Nameplate RPM, 230/460 Voltage, Frame 256TC

More Views

20 HP Washdown Motor, 3-Phase, 1765 Nameplate RPM, 230/460 Voltage, Frame 256TC

Availability: Out of stock

$ 1,400.00

Quick Overview

Technical Specs

Item Washdown Motor
Motor Application Washdown
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan-Cooled
HP 20
Nameplate RPM 1765
Frame 256TC
NEMA Design B
Motor Shaft Rotation CW/CCW
Voltage 230/460
Full Load Amps 49.0/24.5
Phase 3
Hz 60
Motor Mounting Type Face/Base
Motor Bearings Ball
Motor Frame Material Stainless Steel
Motor Thermal Protection None
Motor Service Factor 1.15
Max. Ambient Temp.040 Degrees C
Shaft Dia.01-5/8"
Shaft Length 4"
Motor Shaft Design Keyed
Body Dia.012-1/4"
Length Less Shaft 20-5/8"
Overall Length 25-5/16"
Ins. Class F
RPM Range 1701-1800
Duty Continuous
Shaft Material Stainless Steel
Conduit Box Split
Drain Plugs 4 per Endshield
Nominal Efficiency 93.0%
WARNING: Metal products may contain one or more chemicals known to The State of California to cause cancer, birth defects or reproductive harm. These include but are not limited to Chromium, Cobalt, Lead, and Nickel. www.P65Warnings.ca.gov

Details

Product Details The 300 Series stainless steel exterior components of this motor provide maximum corrosion resistance in severe-duty and washdown environments. The motor is well-sealed against moisture and condensation to protect internal components, and the exterior is completely paint- and coating-free. A heavy polyester insulating varnish is applied to the windings for extra moisture and corrosion resistance. Additional features include a moisture-resistant sealant between the frame and endbells and double-sealed oversized bearings with rust-inhibitive grease. The shaft-end bearing is locked internally to limit axial endplay. 4 drains in each endshield allow drainage of condensation in any mounting position. This motor is for use in the food processing, chemical processing, and beverage industries. This item must be shipped freight. Please contact us for a freight rate prior to purchasing.

Additional Information

Weight 400.0000
Free Shipping No
Manufacturer N/A
Thickness No
Width No
Length NA
Height No
Diameter NA
