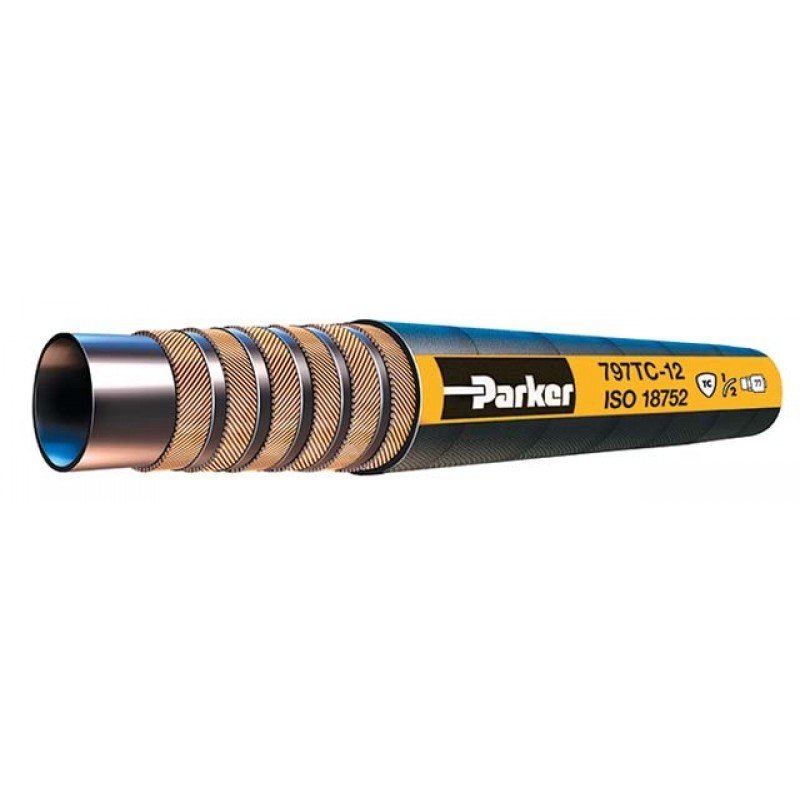

Parker 797TC-24 Hydraulic Hose - 5' Length

Availability: In stock

$ 250.00
  • OR

    Details

    Parker 797TC-24 Hydraulic Hose - 5' Length Parker’s GlobalCore 797 hose provides 6,000 psi (42 MPa) constant working pressure in all sizes. Compared with conventional spiral hose, the Compact Spiral design 797 hose offers measurably greater advantages in routing and installation, product size and weight, inventory savings and much more. The 797 hose exceeds the ISO 18752 performance specification. ½ the bend radius of SAE spiral.6,000 psi constant working pressure in all sizes.Exceeds ISO 18752 performance specification.Nearly 30% smaller O.D. by area than SAE spiral.Twice the impulse/life – tested up to 2,000,000 cycles (DC rated hoses).Flex impulse tested, providing a hose superior in both performance and service life.Up to 26% less hose weight than SAE spiral. Application: Petroleum-based hydraulic fluids, lubricating oilsMinimum Bend Radius inch: 12Weight kg/m: 3,96Working Pressure psi: 6000Hose O.D. mm: 52,8Hose I.D. mm: 38Weight lbs/ft: 2.66Hose O.D. inch: 2.08Minimum Bend Radius mm: 305Hose I.D. inch: 1-1/2Working Pressure MPa: 42Temperature: 120°C (250°F)Fittings: 77 Series, sizes -8 to -32Temp. Range: -40˚F to +257˚F (-40˚C to +125˚C) (-4 rated to +212˚F)Cover: Synthetic rubber abrasion resistantReinforcement: Four- or six-compact spiral steel wires for sizes -6 to -32Inner Tube: Proprietary synthetic rubberCompatible Fittings: Parkrimp 77 SeriesGrade: CImpulse Pressure(% of MWP): 133% and 120%Minimum Number of Cycles: 500,000

    Additional Information

    Weight 20.0000
    Free Shipping No
    Manufacturer No
    Thickness No
    Width No
    Length NA
    Height No
    Diameter NA
